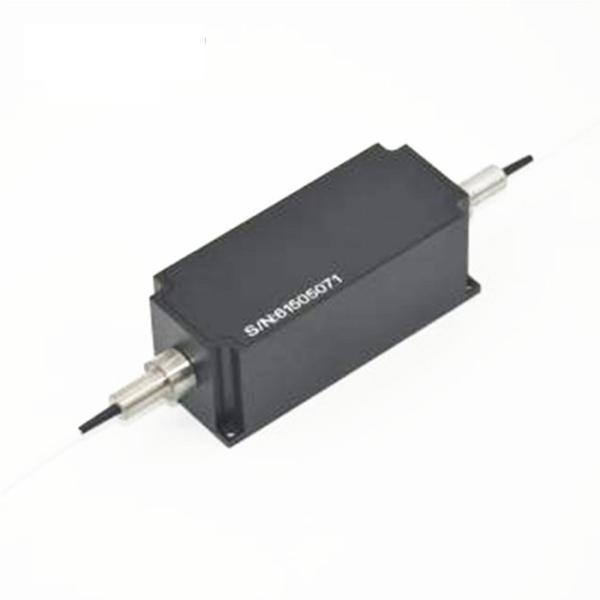

GaPho 850nm 980nm Optical Fiber Circulator Compact Size

  • 1
  • 2
  • 3

Brand Name : GaPho

Model Number : Fiber Optical Circulator

Place of Origin : China

MOQ : 10

Price : Negotiable

Payment Terms : T/T

Supply Ability : 20000/week

Delivery Time : 7-10 day

Packaging Details : Carton

Typ. Peak Isolation : 23

Max. Peak Power for ns Pulse : 10

Package Dimension : 64x28x26 or Specify

Operating Temperature : +10~+50

Storage Temperature : 0~+60

Contact Now

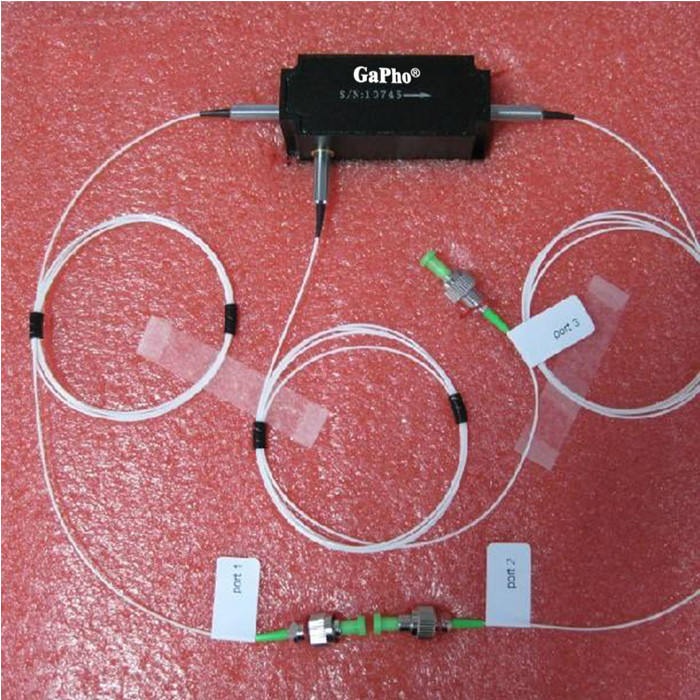

Optical Fiber Circulator High Power Fiber Optical Circulator



The high power circulator is characterized with low insertion loss, high extinction ratio, high isolation, high power handling, high return loss, excellent environmental stability and reliability. They are ideal for fiber laser and instrumentation applications.



◇Features:
 Low Insertion Loss
 High extinction ratio
 High isolation
 Excellent stability and reliability



◇ Application:
 Optical Amplifier
 CATV Systems & Fiberoptic Sensors
 Fiber lasers
 Dispersion Compensation



Parameters Unit Value
Center Wavelength nm 850 980
Operating Wavelength Range nm ±5
Typ. Peak Isolation dB 23
Max, Isolation at 23℃ dB 20
Typ. Insertion Loss at 23℃ dB 1.3
Max. Insertion Loss at 23℃ dB 1.5
Max. Polarization Dependent Loss at 23℃, only for PI dB 0.15
Min. Return Loss(Input/ Output) dB 40 45
Min. Cross Talk dB 40 45
Max. Average Optical Power W 10 40
Max. Peak Power for ns Pulse kW 10
Max. Tensile Load N 5

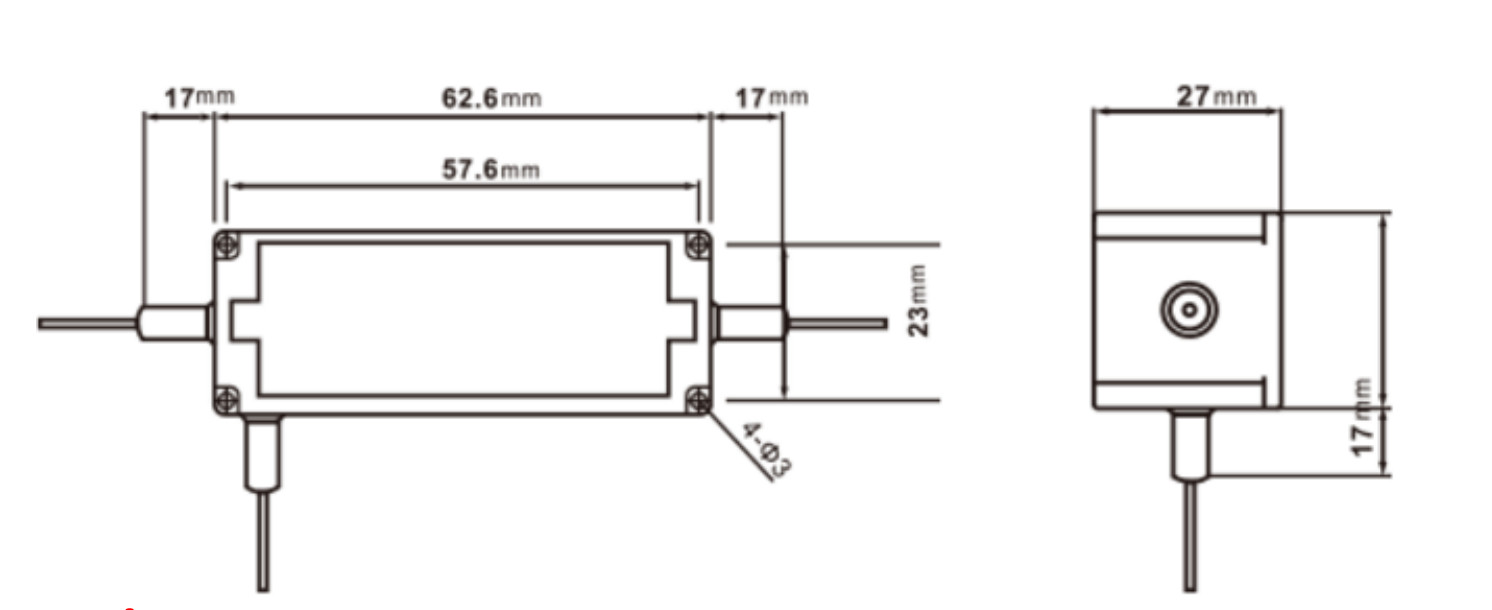

Package Dimension mm 64x28x26 or Specify
Operating Temperature ℃ +10~+50
Storage Temperature ℃ 0~+60

GaPho 850nm 980nm Optical Fiber Circulator Compact Size

PIOC Connector Wavelength Grade Fiber type Pigtail length
  11-ST
21-FC/PC
31-SC/PC
41-LC/PC
51-MU/PC
00-None
xx-Others		 98-980 nm
85-850 nm		 P-P Grade 2-50/125um
3-62.5/125um
x-others		 Pigtail length
050-50cm
100-100cm
150-150cm
200-200cm
000-Modulized
xxx-Others

GaPho 850nm 980nm Optical Fiber Circulator Compact Size
