1310 / 1550nm In Line Fiber Optic Polarizers Fc Pc Connector With High Stability And Reliability

Product Categories
Shenzhen Jiangfan Communication Equipment Co., Ltd.
Contact Now

1310 / 1550nm In Line Fiber Optic Polarizers Fc Pc Connector With High Stability And Reliability

  • 1
  • 2
  • 3

Brand Name : GAPHO

Place of Origin : ShenZhen, China

MOQ : 50

Price : negotiate

Payment Terms : T/T, D/A, D/P, T/T, L/C

Supply Ability : 10000

Delivery Time : 7-10 day

Packaging Details : Carton,pearl cotton,bubble bag,plastic bag

Model Number : In-Line Fiber Optic Polarizers

Product name : In-Line Fiber Optic Polarizers

Type : Optical Isolator

Brand name : GAPHO

Center wavelength (nm) : (nm) 1310, 1550；1030，1064:；980；850

Connector Type : LC/SC/FC/ST or others

Storage temperature (℃) : -40 ~ +85

Operating temperature (℃) : -5~+70

Contact Now

GAPHO 1310/1550 nm In-Line Fiber Optic Polarizers fc pc connector High stability and reliability
Description
The In-line Polarizer is designed to pass light with one specific polarization while blocking the other polarization. It can be used to convert unpolarized light into polarized light with high extinction ratio. It can also be used to enhance the extinction ratio of signals with its excellent polarization properties. It is ideal for high speed communication systems and test instrumentations where high polarization extinction ratio is required.
Features
  • Low Insertion Loss
  • High Extinction Ratio & High Isolation
  • High stability and reliability
Application
  • Fiber optic Amplifiers
  • Optical network
  • Power monitoring
  • Fiber sensor



Specifications
Parameters Unit Value
Center Wavelength nm 1310, 1550 1064 980 850
Operating Wavelength Range nm ±50 ±30 ±10 ±10
Typ. Insertion Loss at 23℃ dB 0.3 0.4 0.7 0.8
Max. Insertion Loss at 23℃ dB 0.5 0.6 0.9 1
Min. Return Loss dB 50 50 50 50
Typ. Extinction Ratio at 23℃ dB 30 30 28 28
Min. Extinction Ratio at 23℃ dB 28 28 25 25
Max. Optical Power(CW) mW 300
Max. Tensile Load N 5
Fiber Type - PM1550 PM980 PM980 PM850
    SMF-28E Hi1060 Hi1060 SM800
Operating Temperature ℃ -5~+70
Storage Temperature ℃ -40~+85

*For device with connector, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower.

*The default connector key is aligned to slow axis.

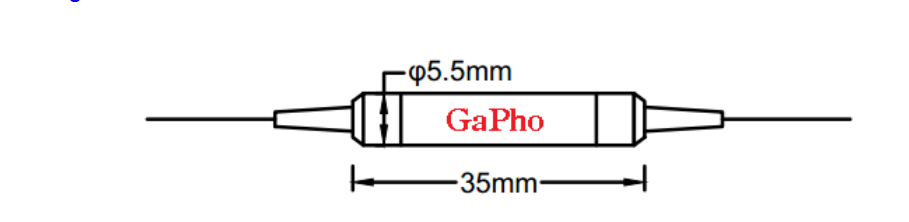

Package Dimensions



1310 / 1550nm In Line Fiber Optic Polarizers Fc Pc Connector With High Stability And Reliability

Ordering Information



ILP-1111-2345-66
1111 -Center Wavelength: 1550=1550nm,1310=1310nm,......,0850=850nm
2 -Fiber type for input: 0=Panda fiber, 1=smf-28e, 2=hi1060,
3 -Fiber type for output: 0=Panda fiber, 1=smf-28e, 2=hi1060,
4 -Pigtail type: 0=250 bare fiber, 1=900um loose tube
5 -Fiber length: 0=0.8m,1=1m
66 -Connector type: 0=FC/UPC,1=FC/APC,2=SC/UPC,3=SC/APC,4=LC/UPC,5=LC/APC



1310 / 1550nm In Line Fiber Optic Polarizers Fc Pc Connector With High Stability And Reliability

1310 / 1550nm In Line Fiber Optic Polarizers Fc Pc Connector With High Stability And Reliability

1310 / 1550nm In Line Fiber Optic Polarizers Fc Pc Connector With High Stability And Reliability



Manufacturing & Equipment





Package&shipping

1310 / 1550nm In Line Fiber Optic Polarizers Fc Pc Connector With High Stability And Reliability

1310 / 1550nm In Line Fiber Optic Polarizers Fc Pc Connector With High Stability And Reliability
