850nm High Power Fiber Optical Circulator 250um Bare Amplifier Multi Mode

Product Categories
Shenzhen Jiangfan Communication Equipment Co., Ltd.
Contact Now

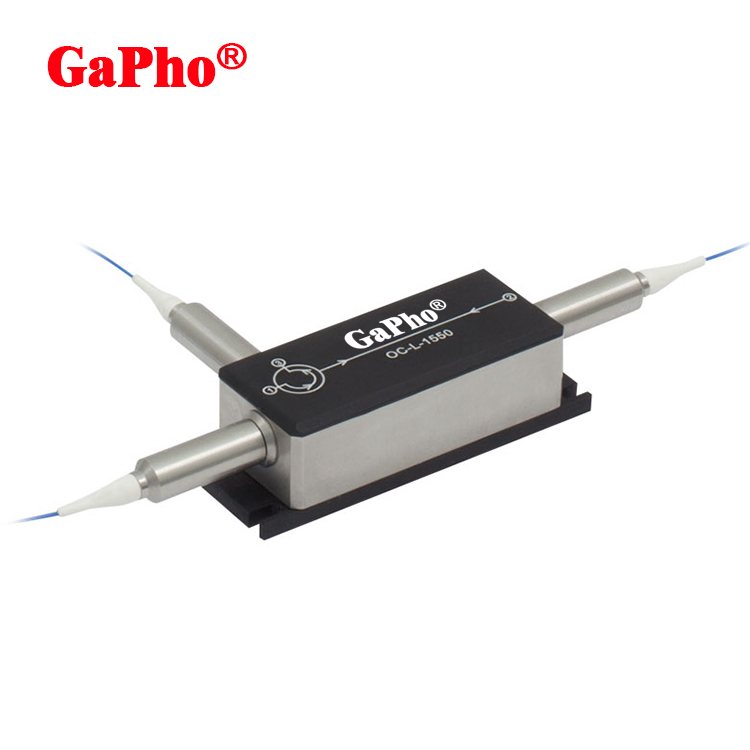

850nm High Power Fiber Optical Circulator 250um Bare Amplifier Multi Mode

  • 1
  • 2
  • 3

Brand Name : GAPHO

Model Number : Optical Fiber Circulator

Place of Origin : China

MOQ : 50

Price : negotiate

Payment Terms : T/T, D/A, D/P, T/T, L/C

Supply Ability : 10000

Delivery Time : 7-10 day

Packaging Details : Carton,pearl cotton,bubble bag,plastic bag

Center Wavelength : 850

Operating Wavelength Range : ±5

Typ. Insertion Loss at 23℃ : 1.3

Min. Extinction Ratio at 23℃, only for PM : 20

Max. Average Optical Power : Total: 10 (Including Port 1 & Port 2)

Max. Tensile Load : 5

Max. Peak Power for ns Pulse : 10

Storage Temperature : 0~+60

Contact Now

850 nm high power circulator  250 um bare fiber  fiber amplifier multi mode 1.3 typ insertion loss 850nm MM High Power Circulator.docx
Features
  • Low insertion loss
  • High return loss
  • High isolation
  • High stability and reliability
Application
  • Fiber amplifier
  • Testing instrument
  • Fiber sensor
  • Medical equipment



Specifications
Parameters Unit Value
Center Wavelength nm 850
Operating Wavelength Range nm ±5
Typ. Peak Isolation dB 23
Max. Isolation at 23℃ dB 20
Typ. Insertion Loss at 23℃ dB 1.3
Max. Insertion Loss at 23℃ dB 1.5
Max. Polarization Dependent Loss at 23℃, only for PI dB 0.15
Min. Extinction Ratio at 23℃, only for PM dB 20
Min. Return Loss(Input/ Output) dB 40
Min. Cross Talk dB 40
Max. Average Optical Power W Total: 10 (Including Port 1 & Port 2)
Max. Peak Power for ns Pulse kW 10
Max. Tensile Load N 5
Package Dimension mm 70x28x26
Operating Temperature ℃ +10~+50
Storage Temperature ℃ 0~+60

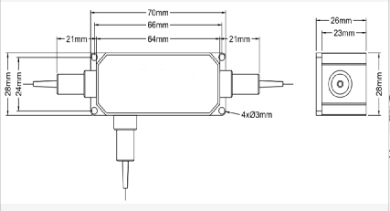

Package Dimensions



850nm High Power Fiber Optical Circulator 250um Bare Amplifier Multi Mode

Ordering Information



1064 -Center Wavelength: 850=850nm
2 -Axis Alignment for PM: F=Slow axis working, Fast axis blocked, B=Both of axis working, N=No axis
3 -Fiber Type: 0=MM50/125 fiber,S=Specified
4 -Pigtail Type: 0=250μm bare fiber, 1=900μm loose tube
5 -Fiber Length: 0=0.8m,1=1m
6 -Package Dimension: 0=70x28x26mm, S=Specified
77 -Handling Power: 00=500mW, 01=1W, 02=2W,......, 05=5W, 10=10W

850nm High Power Fiber Optical Circulator 250um Bare Amplifier Multi Mode

850nm High Power Fiber Optical Circulator 250um Bare Amplifier Multi Mode

850nm High Power Fiber Optical Circulator 250um Bare Amplifier Multi Mode

Package&shipping

850nm High Power Fiber Optical Circulator 250um Bare Amplifier Multi Mode

850nm High Power Fiber Optical Circulator 250um Bare Amplifier Multi Mode

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.



Q:When our company be established?

A: We started from year 2013



Q: Can you provide samples for customers?

A: Yes, but the shipping will be charged on the customer's account.



Q:Do you offer OEM services?

A: We accept OEM, ODM. Cable sizes and materials can be customized.
