1540-1620nm Fiber WDM Passive Optical Components With 3 Ports

  • 1
  • 2
  • 3

Brand Name : GaPho

Model Number : WDM Module

Place of Origin : China

MOQ : 10

Price : Negotiable

Payment Terms : T/T

Supply Ability : 20000/week

Delivery Time : 7-10 day

Packaging Details : Carton

Passband Wavelength : 1540~1620

Reflectband Wavelength : 1260-1360

Directivity : >50

Storage Temperature : ~40~85

Contact Now

WDM Module Optical Fiber WDM Components 3 Ports



◇Features:
 Low Insertion Loss
 High Channel Isolation
 High Stability, High Reliability
 Epoxy-free on Optical Path



◇ Application:
 WDM System
 CATV System
 Fiber Optical Amplifier



◇ Specifications

Parameter Value Unit
Standard Isolation High Isolation N/A
Passband Wavelength 1540~1620 nm
Reflectband Wavelength 1260-1360 nm
Insertion Loss @Pass <0.60 dB
Insertion Loss @Reflect <0.40 dB
Isolation @Pass >30 dB
Isolation @Reflect > 15 >30 dB
PDL <0.10 dB
Directivity >50 dB
Return Loss >45 dB
Power Handling 300 mW
Operating Temperature 5—70 °C
Storage Temperature ~40~85 °C

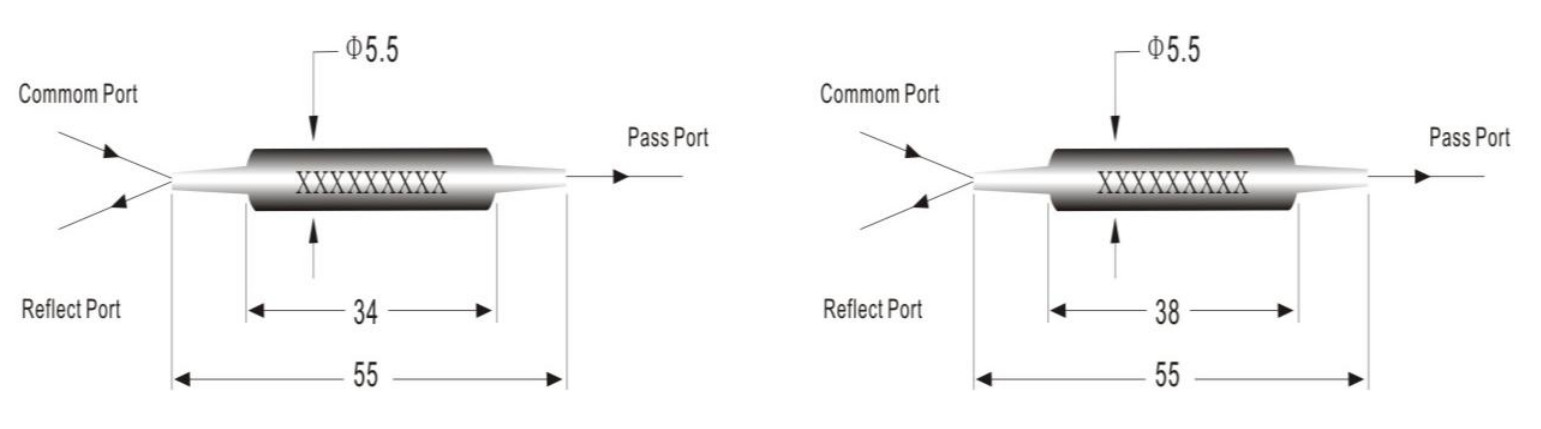

Dimension Ø 5.5 x 34L (250um fiber) Ø 5.5 x 38L (900um fiber) mm

1540-1620nm Fiber WDM Passive Optical Components With 3 Ports

WDM Wavelength Isolation Fiber Type Fiber Length Connector Package
WDM 3-Port Device I K 1550Pass & 1310Reflect 1 =Standard
2=High		 1 =250um SM
2=900um SM		 I=0.5m
2-Im
3-2m
x=Specify		 I=None
2-FC/UPC
3=FC/APC
4=LC/UPC
5=LC/APC
6-SC/UPC
7-SC/APC
x=Specify		 l=Ø 5.5x34mm
2=Ø 5.5x38mm
X=Specify
