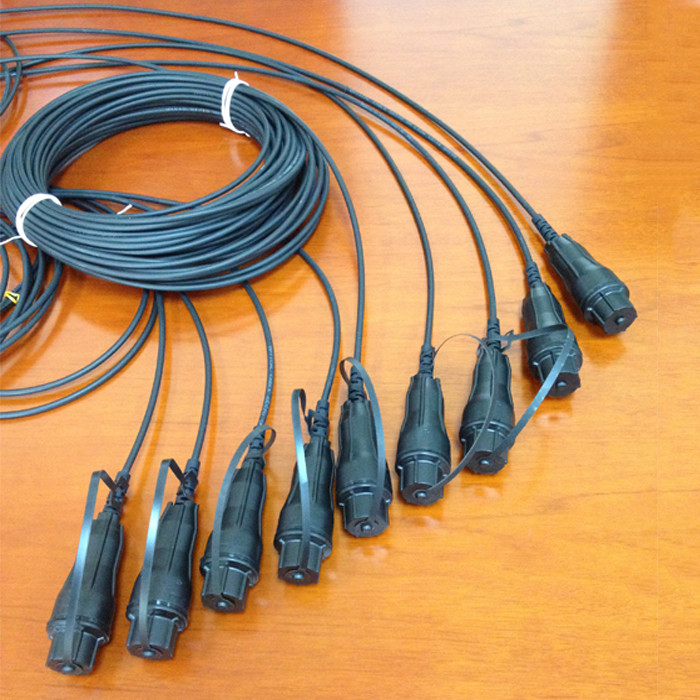

Te Fullaxs Patch Cord Connector Bayonet Style Locking Waterproof

Product Categories

Shenzhen Jiangfan Communication Equipment Co., Ltd.

Contact Now

Name: Te Fullaxs Patch Cord Connector Bayonet Style Locking Waterproof
Brand: GaPho
Price: 1 USD

Brand Name : GaPho

Model Number : Te-Fullaxs

Place of Origin : China

MOQ : 10

Price : Negotiable

Payment Terms : T/T

Supply Ability : 20000/week

Delivery Time : 7-10 day

Packaging Details : Carton

Mating mechanism : bayonet style locking

Housing material plug : high performance plastic

Operting temperature : -40r to +85P

Contact Now

Te-Fullaxs Waterproof Cable Connector High Quality

Specifications
Mating mechanism			bayonet style locking
Housing material plug			high performance plastic
Technology			LC with full ceramic ferrules
Mechanical performance	tensile load		150N
	static side load		30N
Operting temperature			-40r to +85P
Mating durability	IEC 61300-2-2		10Ocycles
Ingress protection (mated)	IEC 60529		IP65/IP67/IP68
Vibration	IEC 61300-2-1		passed 10Hz—500Hz/1 Oq
Performance standards	IEC 61753-1 CAT.E		compliant
	Telcordia GR3120		compliant
Dimensions	Length Diameter		119mm 036mm
Cable diameter			04.5—9mm
Optical performance
Insertion loss	singlemode	typ・M0.20dB		97%M0.45dB
	multilemode	typ.M0.20dB		97%^0.50dB
Return loss	sinqlemode	N50dB


	OPTICAL CABLE	05.0mm Duplex Jacket: LSZH G657A2 ColonBlack
⑤	THREAD	Color: Black
④	FULLEXS BODY	Color: Black
	CONNECTOR	02.0mm LC/PC Duplex CONN. Body Color:Blue/Beige Clip Color: Blue/Beige
②	DUST CAP	Transparent
①	DUST CAP	Color: Black
NO.	ITEM	DESCRIPTION

		PART NO.: G9985TT4B***-001
XM		PART NO.: G9985TT4B***-001
2	TITLE: FULLEXS/LC/PC-FULLEXS/LC/PC Duplex patchcord
2	TITLE: FULLEXS/LC/PC-FULLEXS/LC/PC Duplex patchcord
2	DRAWN BY	DRAWING NO.	G9985TT4B*«-001
4	CHECKED BY	DRAWING SIZE	A4
2	APPROVED BY	UNIT	mm
QTY	SORTING NO.	PAGE	1 OF 1

Te Fullaxs Patch Cord Connector Bayonet Style Locking Waterproof
