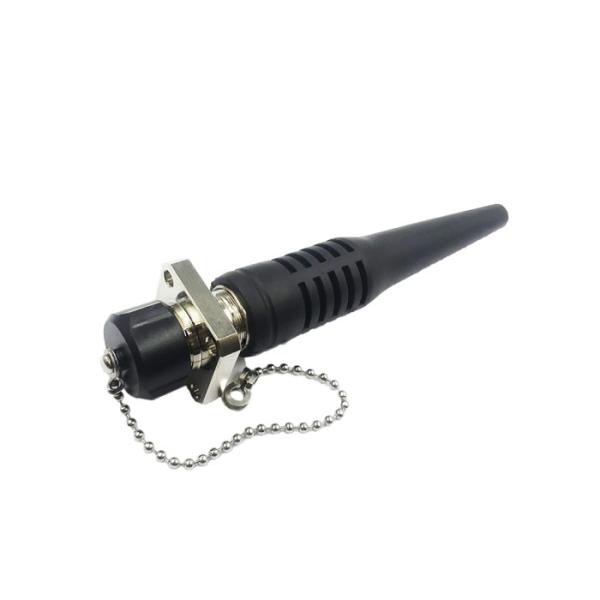

IP68 Fiber Optic Cable Connector ODC Waterproof Protection Caps

Product Categories

Shenzhen Jiangfan Communication Equipment Co., Ltd.

Contact Now

Name: IP68 Fiber Optic Cable Connector ODC Waterproof Protection Caps
Brand: GaPho
Price: 1 USD

Brand Name : GaPho

Model Number : ODC Waterproof Protection Caps

Place of Origin : China

MOQ : 10

Price : Negotiable

Payment Terms : T/T

Supply Ability : 20000/week

Delivery Time : 7-10 day

Packaging Details : Carton

Technology : full ceramic ferrule and sleeve

Housing material : nickel-plated brass

Contact Now

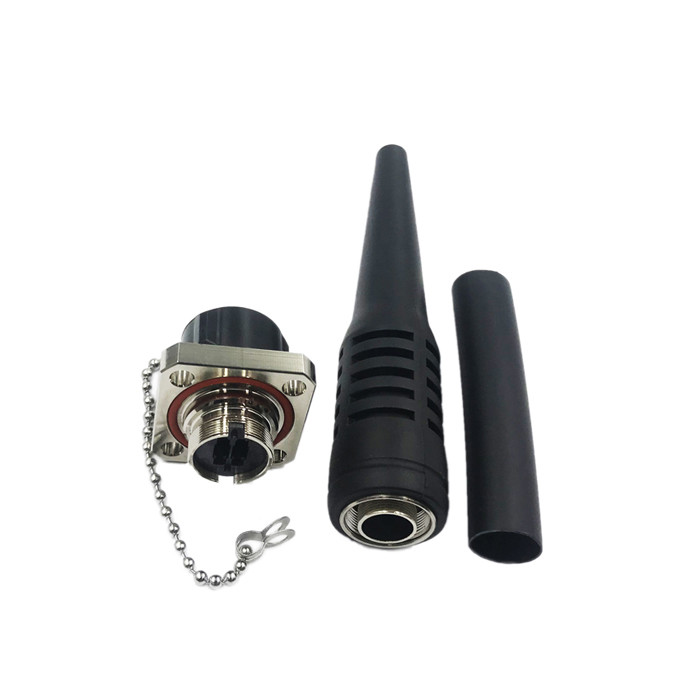

ODC Waterproof Protection Caps Cable Waterproof Connector

1.Features:

• 2 fibers, singlemode or multimode

• Compact design with 2 x 1.25 mm ferrules

• Built-in socket with square or hexagonal flange

• Extension connector for cable chaining

• Screwed locking mechanism

• Easy and safe installation

• Waterproof, dust proof and corrosion resistant

• Waterproof protection caps

• EMI protected

• RoHs compliant

• Full compatibility with previous version

• Fulfills performance standard IEC 61753-1 Cat. E

2.Specifications:

Technology		full ceramic ferrule and sleeve
Housing material		nickel-plated brass
Mechanical performance	ODC-2 plug	≤ 800 N tensile load ≤ 30 N static side load
Mechanical performance	ODC-2 socket	≤ 30 N static side load
Installation torque force	min. 1 Nm	max. 2 Nm
Operating temperature	IEC 61300-2-22	– 40 °C to + 85 °C
Mating durability		1000 cycles
Ingress protection (mated)	IEC 60529	IP 68
Salt mist	IEC 61300-2-26	30 days passed
Vibration	IEC 61300-2-1	passed 10 Hz – 500 Hz / 10 g
Shock	IEC 61300-2-9	passed 100 g

3.Optical performance:

IP68 Fiber Optic Cable Connector ODC Waterproof Protection Caps

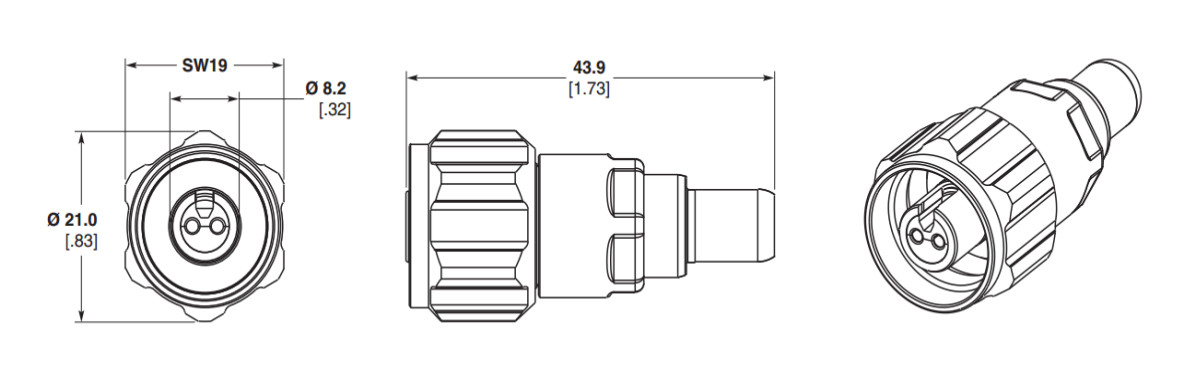

3.Standard type : ODC-2 plug

4.Standard type: ODC-2 socket – square small

5.Overview of ODC-2 connector types :
