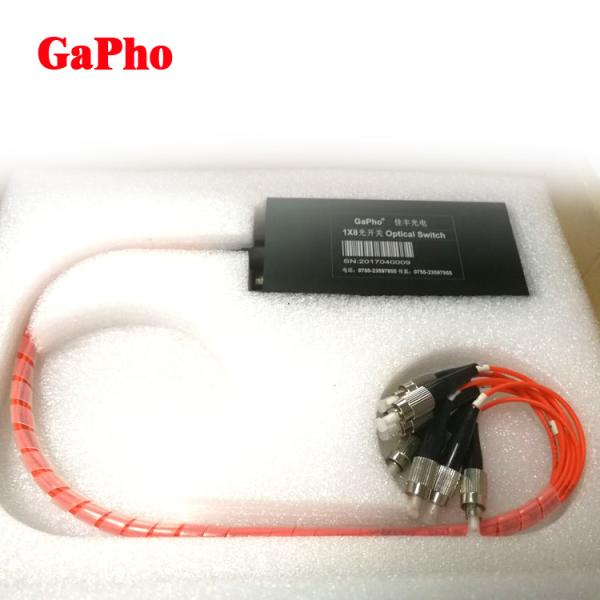

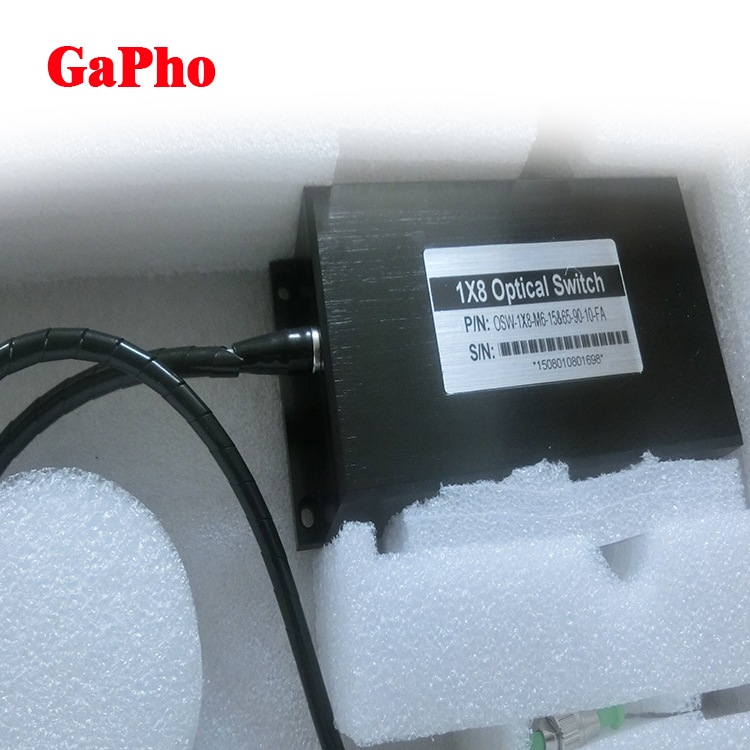

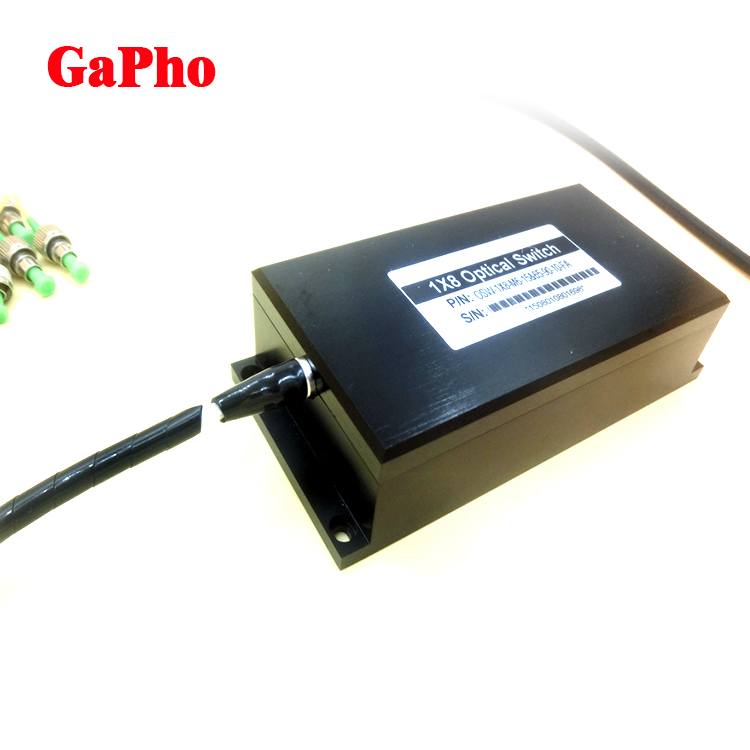

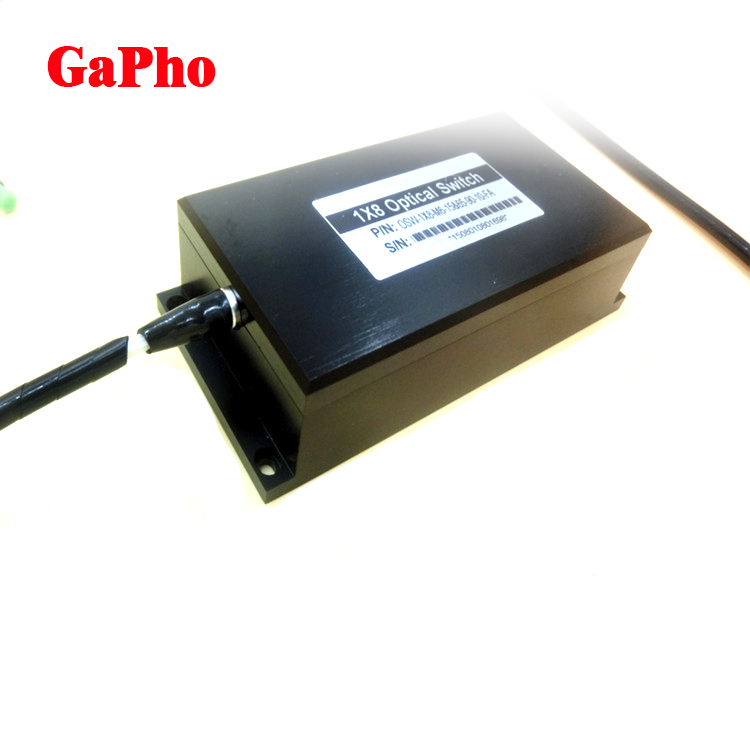

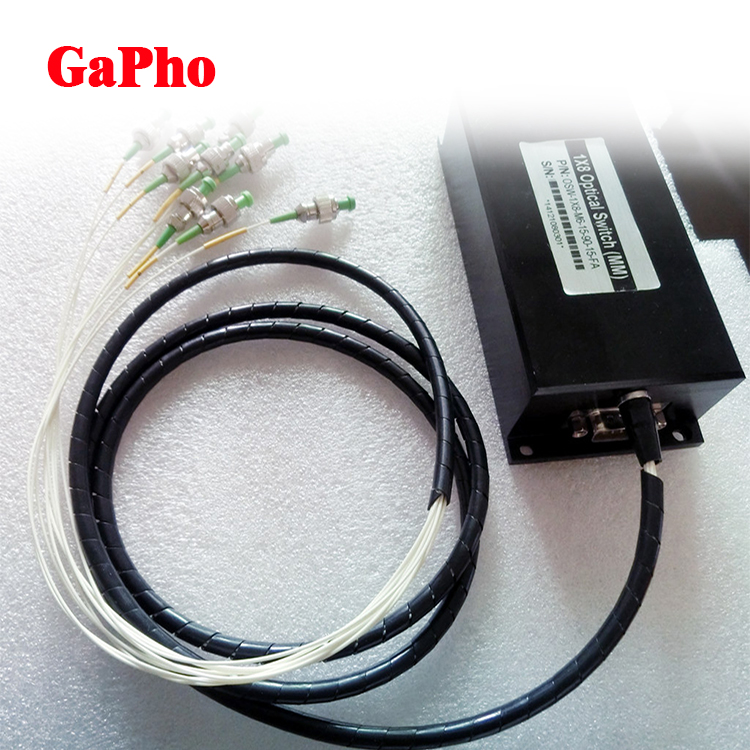

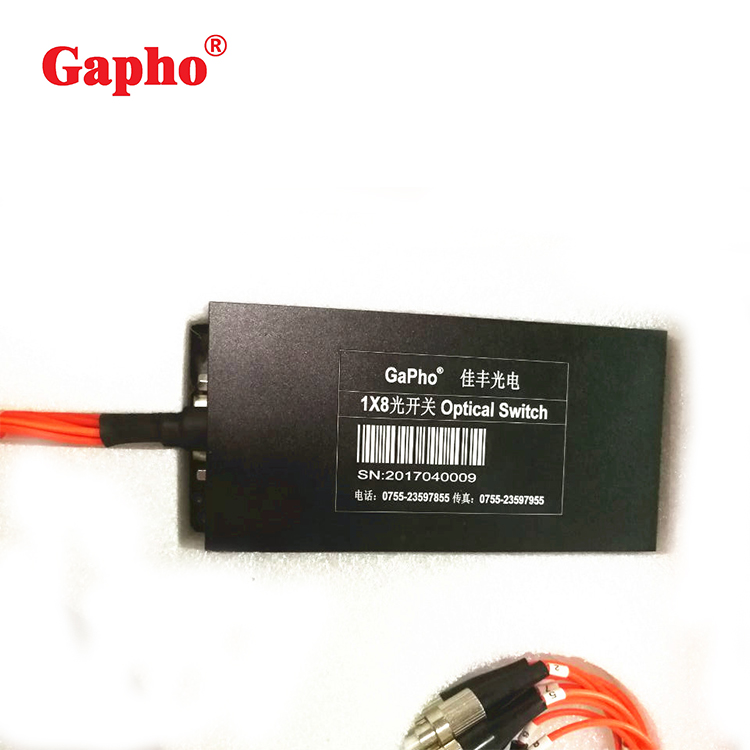

128 port 532~1064nm 1x64Optical Switches Multi-channel Light SwitchC 1XN .optical switch.pptx
◇ features
- Products with low loss and high reliability
- The key components are selected from well-known brands, with better reliability
- Modular design, single up to 128 channels
◇ Application:
- ·Monitoring of Multiple Fiber Optics in Optical Transmission System
- Multi-light source/detector automatic switching, optical sensing multi-point dynamic monitoring system
- Used in optical test system for optical fiber, device, field optical cable test
- Laboratory Optical Device Testing Research
description
1×N optical switch has instrument type, module type, rack type, etc. It is a functional device with the function of switching optical paths. In the optical fiber transmission system, it is used for multi-channel optical monitoring, LAN, multi-light source/detector switching and protection conversion of Ethernet network, etc. In the optical fiber test system, it is mainly used for optical fiber and optical fiber device testing, network testing, field optical cable testing, and optical fiber sensing multi-point monitoring system.
◇specification
| item | | OSW-1×N |
| Insertion Loss | dB | 1<N≤32 | 32<N≤64 | 64<N≤128 |
| Typ:0.6 Max:1.0 | Typ:1.0 Max:1.2 | Typ:1.2 Max:1.6 |
| Wavelength Range | nm | 532~1064 | 12601660 |
| Test Wavelength | nm | 532/650/780/850/980 | 1310/1490/1550/1625 |
| Return Loss | dB | SM≥55,MM≥35 |
| crosstalk | dB | ≥-80 |
| PDL | dB | ≤0.10 |
| WDL | dB | ≤0.25 |
| TDL | dB | ≤0.30 |
| Repeatability | dB | ≤±0.02 |
| Lifetime | 次 | 107 |
| OpticalPower | mW | ≤1000 |
| SwitchingTime | ms | ≤12 |
| OperatingTemperature | C | -20~+70 |
| Storage Temperature | C | -40~+85 |
| power supply | V | +5 |
| Dimension | mm | 1<N≤4 (135×40×32) | 4<N≤12 (135×64×32) | 12<N≤16(184×78×36) |
| 16<N≤64(184×78×66) | 64<N<128 (184×156×66) |
ordering information
| N | A | B | C | D | E | F |
| channel | fiber type | test wavelength | tube type | fiber length | connector | dimension |
| 1 ~ 128 | SM: SM, 9/125 M5: MM, 50/125 M6: MM, 62.5/125 | 850: 850nm 1310: 1310nm 1550: 1550nm 13/15:1310/1550nm | 90: 900um 20: 2.0mm 30: 3.0mm | 05: 0.5m 10: 1.0m 15: 1.5m | OO:None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC STP: ST/PC STA: ST/APC LP: LC/PC LA: LC/APC | 01: 135×40×32-DB9 02: 135×64×32-DB9 03: 184×78×36-DB9 04: 184×78×66-DB15 05: 184×156×66-DB25 06:140×77.5×32-DB15 07:140×77.5×64-DB15 |
company profile
1.Machinery department: provide precision machinery processing, sheet metal parts processing, plastic injection molding processing, processing and manufacturing supporting various parts.
2. Optical communication department: provide customized processing of optical devices such as optical jumper, optical module, optical switch, wave divider, attenuator adapter, coupler, optical splitter, circulator, isolator, collimator, optical amplifier, etc.
We are specialized in providing solutions for optical cable, packaging solutions for optical devices, and manufacturing of other electronic equipment parts. Our products are widely used in optical communication, electronics, medical care, oil pipeline, audio industrial control, radio, instrumentation and other industries.We have a good design and production team to provide customers with high-quality, reliable and efficient products.
In the process of cooperation, our innovation and service awareness are well received by our customers.
The company specializes in the production of optical communication equipment, optical devices, optical jumpers, distribution boxes, distribution frame.Our company
FAQ
Q:Do you offer OEM services?
A: We accept OEM, ODM. Cable sizes and materials can be customized.
Q:Can you design and customize production according to my requirements
A:Yes, you can tell us your requirements and ideas, we can design drawings, or provide samples, 2D floor plans or 3D drawings (support proe, solidwork, core, Auto CAD, DXF, DWG, step file formats).
Q: Are you trading company or manufacturer ?
A: We are factory.
