Modularized 1x32 MEMS Optical Switch Wavelength Range 850 / 1310nm

Shenzhen Jiangfan Communication Equipment Co., Ltd.
Contact Now

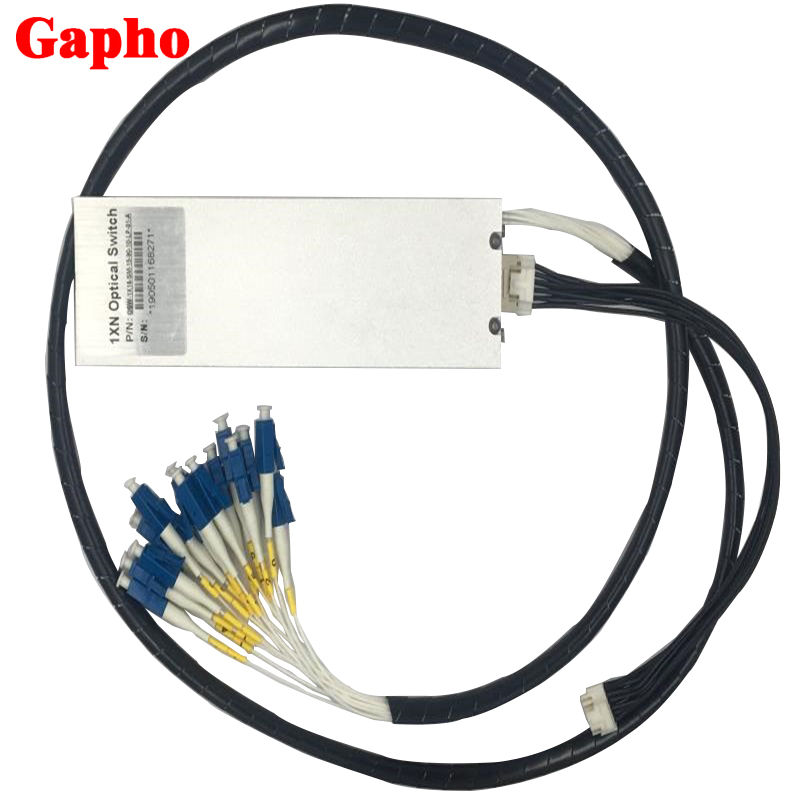

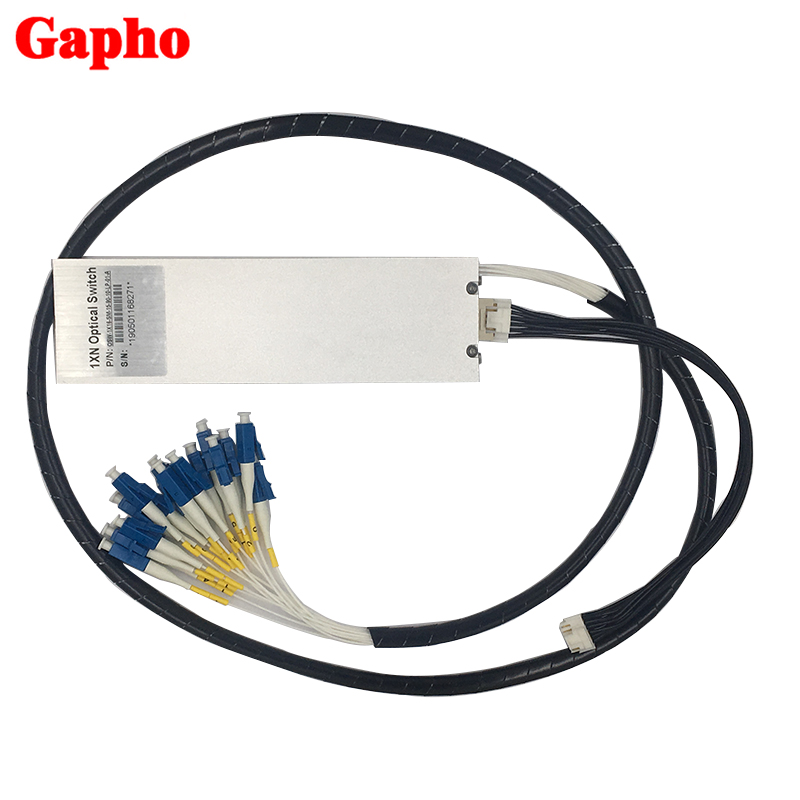

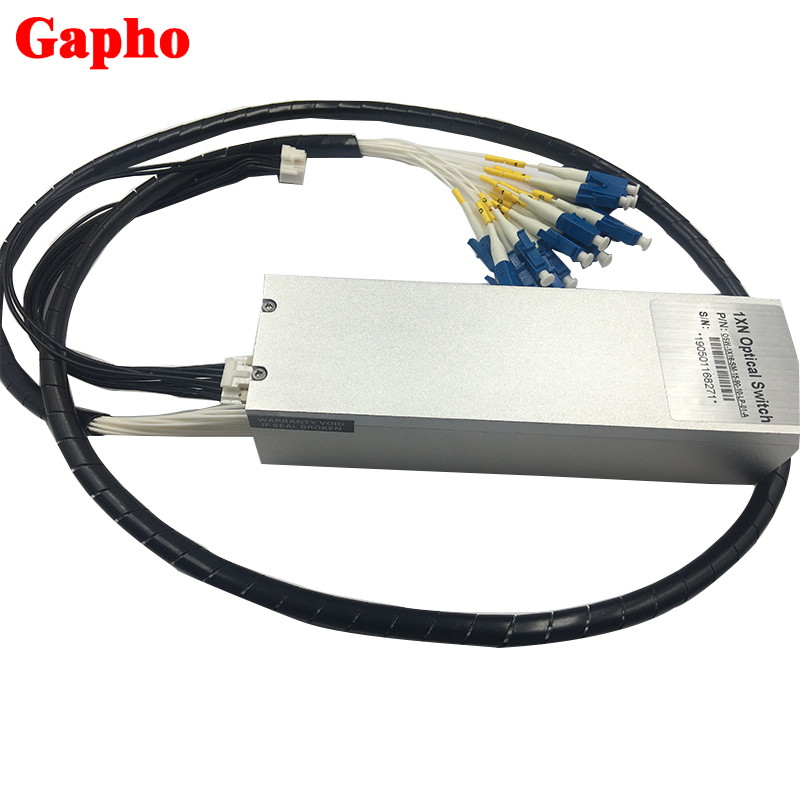

Modularized 1x32 MEMS Optical Switch Wavelength Range 850 / 1310nm

Brand Name : GAPHO

Model Number : MEMS 1x32 Fiber optic switch

Place of Origin : China

MOQ : 50

Price : negotiate

Payment Terms : T/T

Supply Ability : 10000

Delivery Time : 7-10 day

Packaging Details : Carton

test wavelength : 850nm

fiber length : 5m

Connector : FC/PC FC/APC

Operating Temperature : -20 ~ +70

Wavelength Range : 850±40 / 1300±40

Insertion Loss : Typ: 0.8 Max: 1.0 dB

Contact Now

 1x32 Mems Optical Switch Wavelength Range 1260~1620nm Optical Fiber Connector  Modularized design  H 1x 8 mems Optical Switch.pptx





Features:

  • Up to 64 channels
  • Low loss and high reliability
  • Parallel interface
  • Modularized design
  • Epoxy-free in optical path

Application:

  • Ring network
  • Remote monitoring in optical network
  • Testing of fiber optical component

Specifications:



Parameters Unit GP-OSW-1×N
Insertion Loss dB 1 < N ≤ 45 45 < N ≤ 88 88 < N ≤ 128
Typ: 0.8 Max: 1.0 Typ: 1.2 Max: 1.5 Typ: 1.5 Max: 1.8
Wavelength Range nm 850±40 / 1300±40 1260 ~ 1650
Test Wavelength nm 850 / 1300 1310 / 1550
Return Loss dB MM ≥ 30 SM ≥ 50
Crosstalk dB ≥ 55
PDL dB ≤ 0.05
WDL dB ≤ 0.25
TDL dB ≤ 0.25
Repeatability dB ≤ ±0.05
Durability Cycles ≥ 10 Million
Switching Time ms ≤ 10 (Sequence switch time of adjacent channel)
Optical Power mW ≤500
Operating Temperature -20 ~ +70
Storage Temperature -40 ~ +85
Relative Humidity % 5 ~ 95
Dimension mm 135×40×32 (N≤4) 135×64×32 (N≤12) 184×78×36 (N≤16)
184×78×66 (N≤45) 184×156×66 (N≤88) 184×220×66 (N≤128)
140×77.5×32 (N≤16) 140×77.5×64 (N≤32)

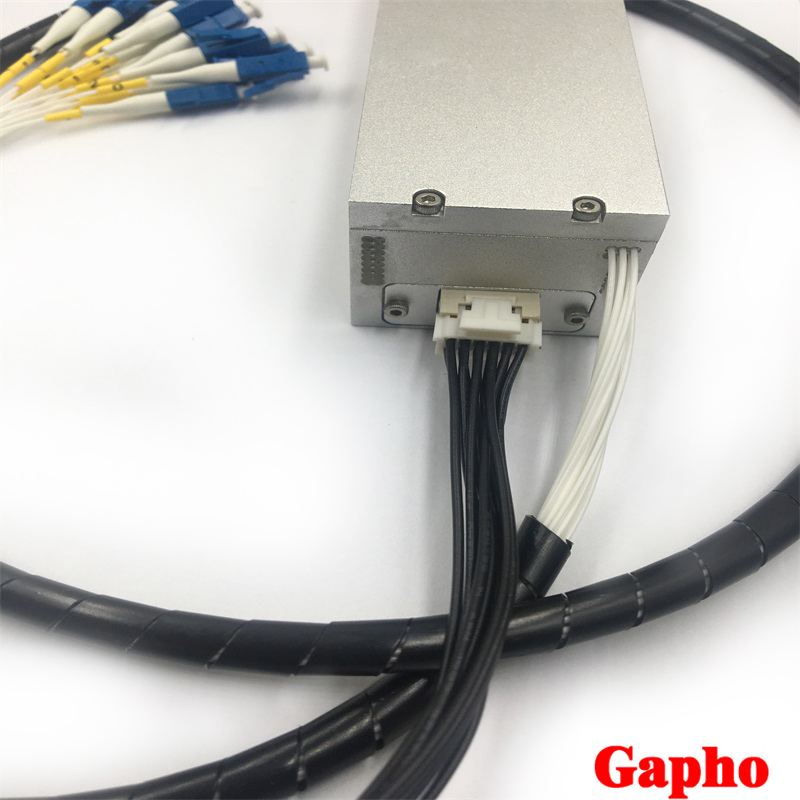

pin configuration :

Description I/O specifications Unit
NC
DC Power Supply Power 5 VDC
Strobe signal, The falling edge of the effective IN TTL
Ground Power
Channel D0 IN TTL
Channel D1 IN TTL
Channel D2 IN TTL
NC
Serial Port Send IN TTL
Serial Port Receive IN TTL
Ground Power
NC
Channel D3 IN TTL 3
Active-low reset IN TTL

Ordering Information:

FOSW- X X X X X X X
Output Fiber Type Package Type Test Wavelength Tube Type Fiber Length Connector Interface
Number (Include connector)
4:04 SM: SM, 9/125 A:Type A 850:850±20nm 25:250um(Type A) 05: 0.5m±5cm OO:None MS1:TTL/RS232
8:08 M5:MM,50/125 B:Type B 1300:1300±20nm 90:900um(Type B) 10: 1.0m±5cm FP: FC/PC MS2:TTL/ I2C
12:12 M6:MM,62.5/125   8513:850&1300±20nm X: Others 15: 1.5m±5cm FA: FC/APC MS3:TTL/I2C/
16:16 X: Others   1310: 1310±20nm   X: Others SP: SC/PC RS232
20:20     1550: 1550±20nm     SA: SC/APC
24:24:00     1315:1310&1550±20nm     STP: ST/PC
      1625:1625±20nm     LP: LC/PC
      X:Others     LA: LC/APC
            X: Others



Modularized 1x32 MEMS Optical Switch Wavelength Range 850 / 1310nm

Modularized 1x32 MEMS Optical Switch Wavelength Range 850 / 1310nm

Modularized 1x32 MEMS Optical Switch Wavelength Range 850 / 1310nm

Modularized 1x32 MEMS Optical Switch Wavelength Range 850 / 1310nm





Description:

The MEMS 1x8 Fiber optic switch connects optical channels by redirecting incoming optical signals into selected output fibers. This is achieved using a patent pending MEMS configuration and activated via an electrical control signal. It uniquely features rugged thermal activated micro-mirror movements instead of rotation, and latches to preserve the selected optical path after the drive signal has been removed. This novel design significantly reduces packaging requirement, and simplifies driving electronics, offering unprecedented high stability as well as an unmatched low cost

company  prolife

Modularized 1x32 MEMS Optical Switch Wavelength Range 850 / 1310nm

We are specialized in providing solutions for optical cable, packaging solutions for optical devices, and manufacturing of other electronic equipment parts. Our products are widely used in optical communication, electronics, medical care, oil pipeline, audio industrial control, radio, instrumentation and other industries.We have a good design and production team to provide customers with high-quality, reliable and efficient products.
In the process of cooperation, our innovation and service awareness are well received by our customers.
The company specializes in the production of optical communication equipment, optical devices, optical jumpers, distribution boxes, distribution frame.Our company
1.Machinery department: provide precision machinery processing, sheet metal parts processing, plastic injection molding processing, processing and manufacturing supporting various parts.
2. Optical communication department: provide customized processing of optical devices such as optical jumper, optical module, optical switch, wave divider, attenuator adapter, coupler, optical splitter, circulator, isolator, collimator, optical amplifier, etc.

  • Packaging & Shipping

According to the customer's requirement.

We can provide packing according to customer's requirement, quantity, weight and volume.

  • Our Services

We can provide customized products for customers. We only need to provide requirements, samples, specifications, drawings, etc.

  • FAQ

Q:Can you design and customize production according to my requirements

A:Yes, you can tell us your requirements and ideas, we can design drawings, or provide samples, 2D floor plans or 3D drawings (support proe, solidwork, core, Auto CAD, DXF, DWG, step file formats).

Q: Are you trading company or manufacturer ?

A: We are factory.
