multifunctional 2mm bundle cable splitter 16/24/36 core multicore fiber optic fan out kit china factory

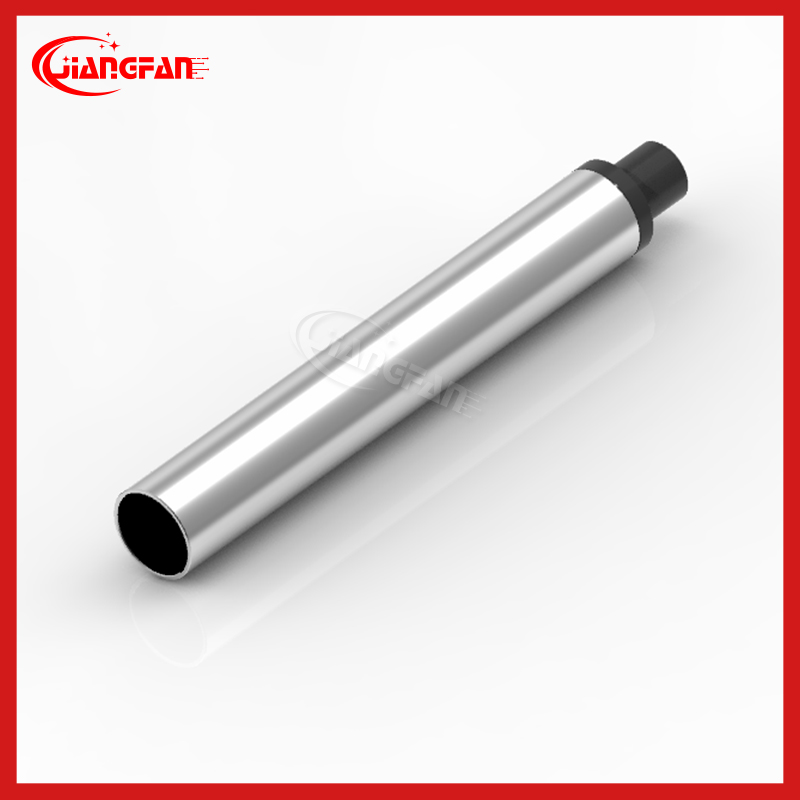

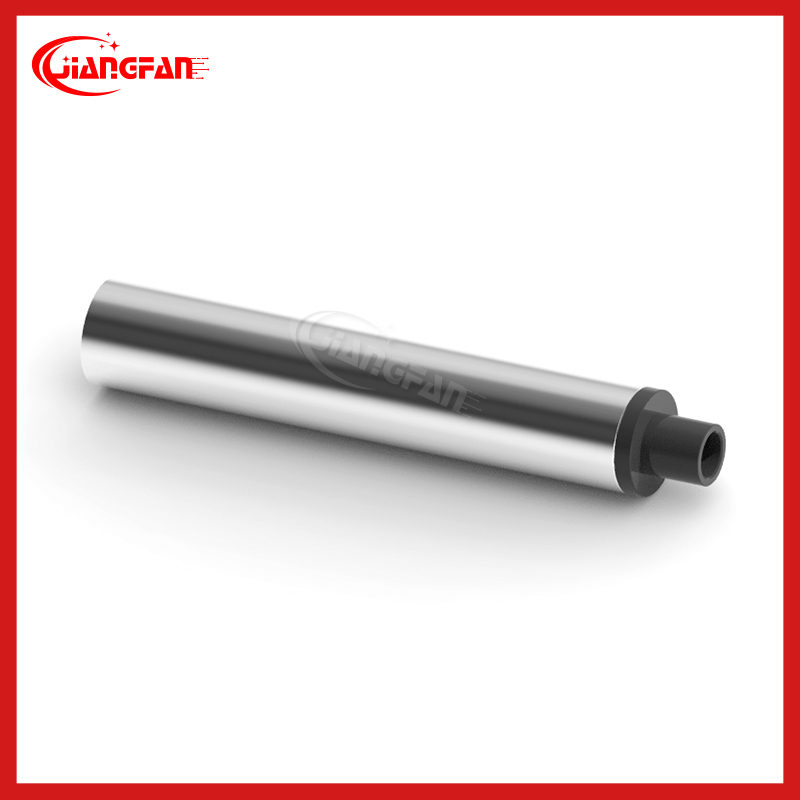

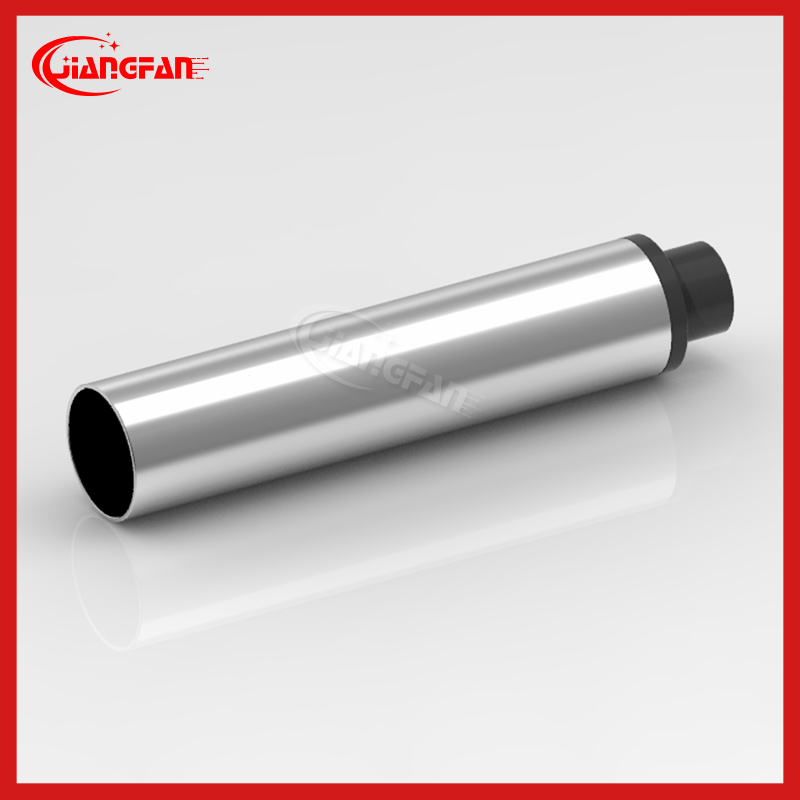

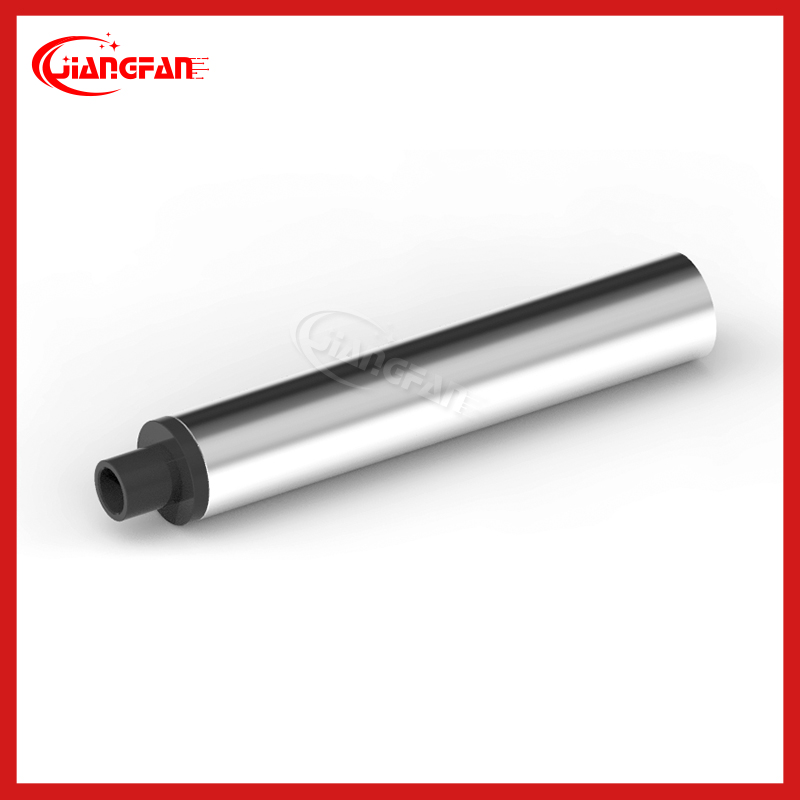

FZQ-07 Fiber Optic Fan Out Kit
The buffer-tube fan-out kits are intended for the furcation of buffer tubes onto 900µm legs as required to field-install connectors on bare fibres. Different kits are available for applications on stranded loose tube cables at indoor or outdoor cross-connection points. In combination with the transition kits the indoor buffer tubes fan-out kits can be also installed on single maxi-tube cables.
application:
- bundled fiber optic cable branch
- Armored fiber optic cable branch
- Field fiber optic cable branch
- Various optical/cable branch solutions
Features:
- Material non-metal black
- POM material
- High temperature resistant to ROHS
- Fast and easy fixing

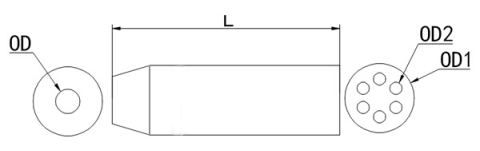

Product specification diagram:
FZQ-07product ordering information:
| Core No. OD2 | Core Dia OD2 | OD Cable Dia | OD1 Product Dia | L Product Lenths | material |
| 1 | 2core | 1 | 0.9mm | 1 | 3.0mm | 1 | 10mm | 1 | 20mm | 1 | POM |
| 2 | 4core | 2 | 1.6mm | 2 | 5.0mm | 2 | 12mm | 2 | 35mm | 2 | Aluminum alloy |
| 3 | 6core | 3 | 2.0mm | 3 | 7.0mm | 3 | 14mm | 3 | 43mm | 3 | copper |
| 4 | 8core | 4 | 3.0mm | 4 | Other | 4 | 18mm | 4 | 50mm | 4 | Stainless steel |
| 5 | 12core | 5 | Other | | | 5 | Other | 5 | Other | 5 | Other |
| 6 | 24core | | | | | | | | | | |
| 7 | Other | | | | | | | | | | |
Material and appearance color can be made according to requirements, suitable for all round outdoor outdoor cables, indoor cables, waterproof cables, armored cables, photoelectric composite cables, optional accessories are: glue, metal fixing ring, hot melt tube, screw, wrench , other accessories need to be customized. Welcome to consult.
Application scenarios
product list

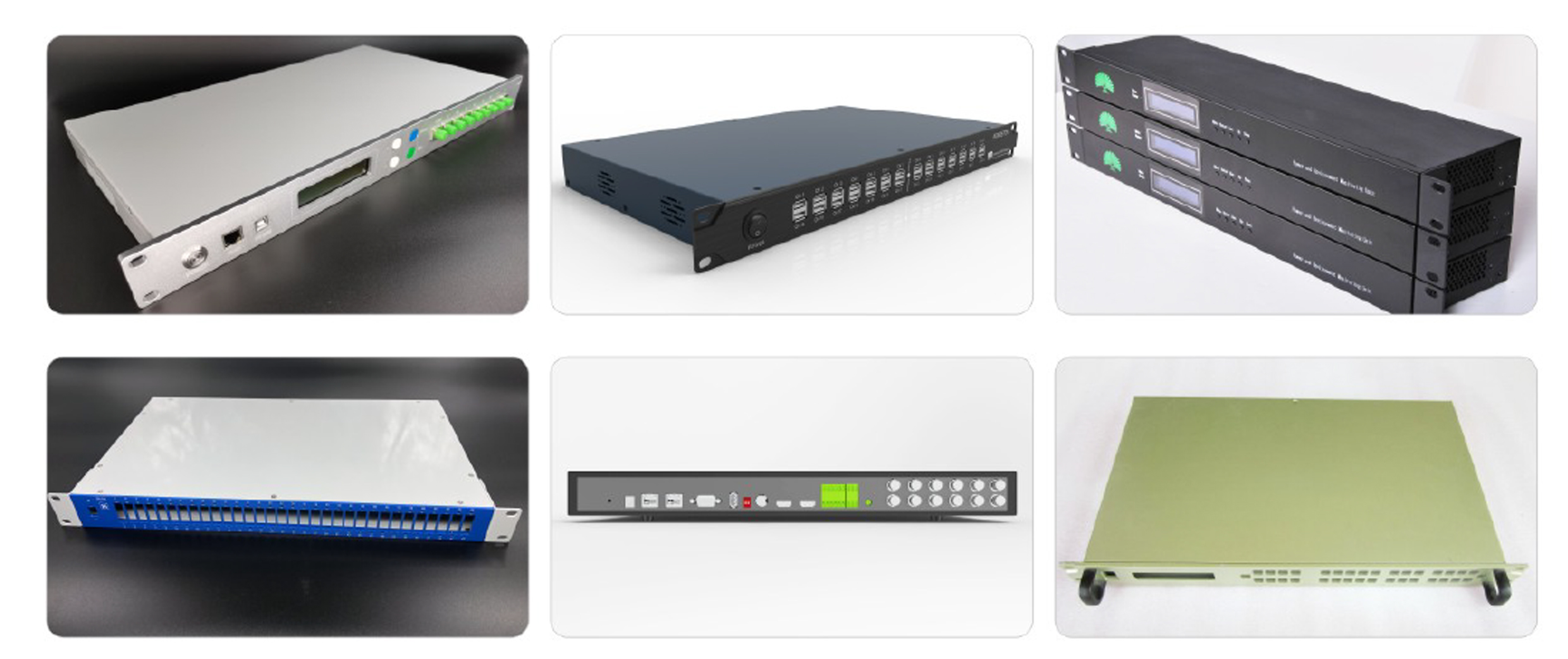

Other Products:
Certification
packagae&shipping
company profile:
Shenzhen Jiangfan Communication Equipment Co., Ltd. is a comprehensive enterprise integrating R&D, production, sales and service.
The company promotes production efficiency and reduces product costs through continuous technological innovation and new process applications.
The company's high-quality products, reasonable prices, and accurate delivery date to cooperate with customers.
Shenzhen Jiangfan Communication Equipment Co., Ltd. is a comprehensive enterprise specializing in design, development, production and processing:
The company has processing equipment: plastic injection molding machine, CNC machining center, CNC lathe, sheet metal bending, laser, riveting, polishing machine, ultrasonic, milling machine, wire cutting, punching machine, surface grinder, quality control equipment, projector, micrometer, ring gauge Product control degree, etc. We have rich experience in supporting production, high quality control, high efficiency, and high-quality after-sales service. The company has an enterprise team with professional skills and dedication and 8 years of manufacturing experience. The company has established long-term and stable cooperative relations with many scientific research units, research universities .
