branching device fanout break out kits FTTH cables MINI cable FZQ-08 24 core 2.0 cable dia 3-14mm

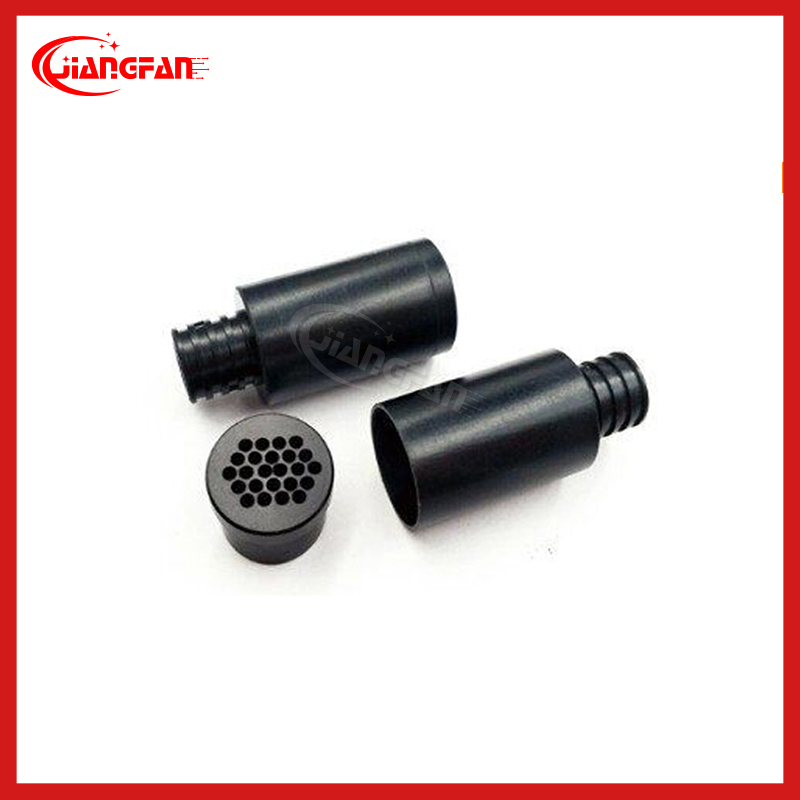

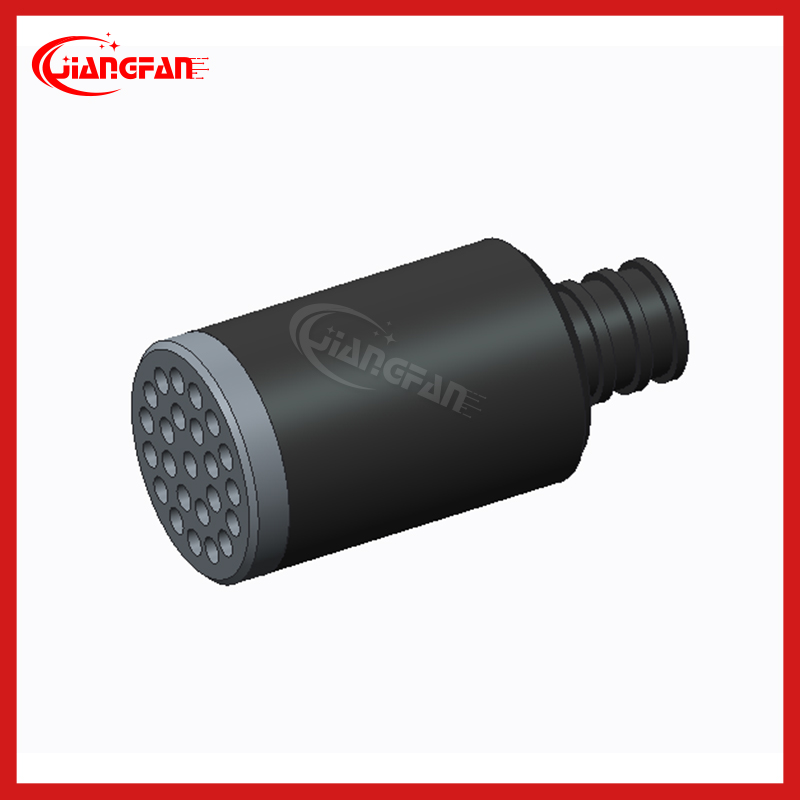

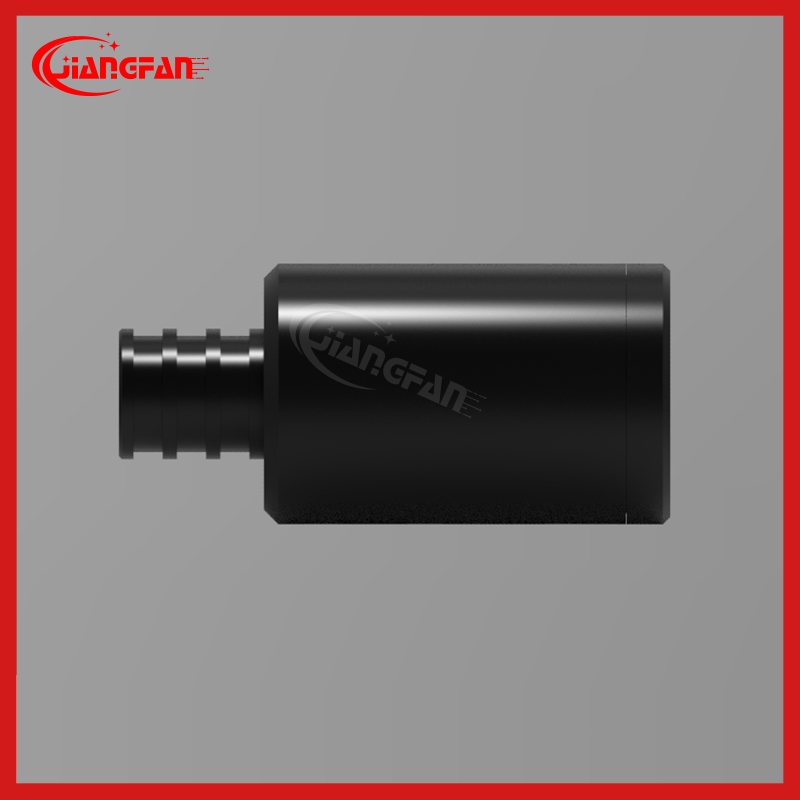

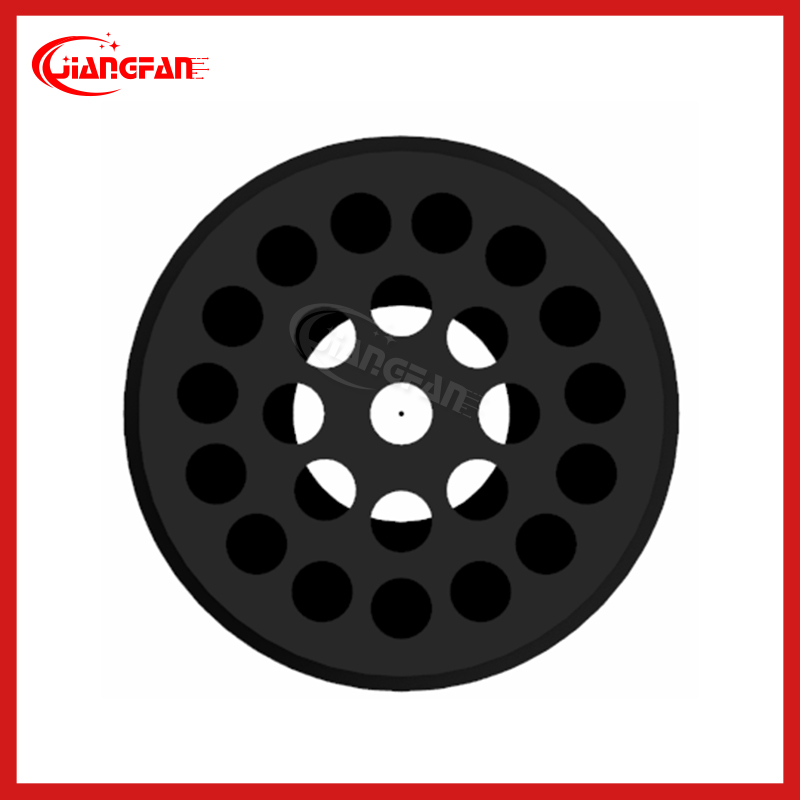

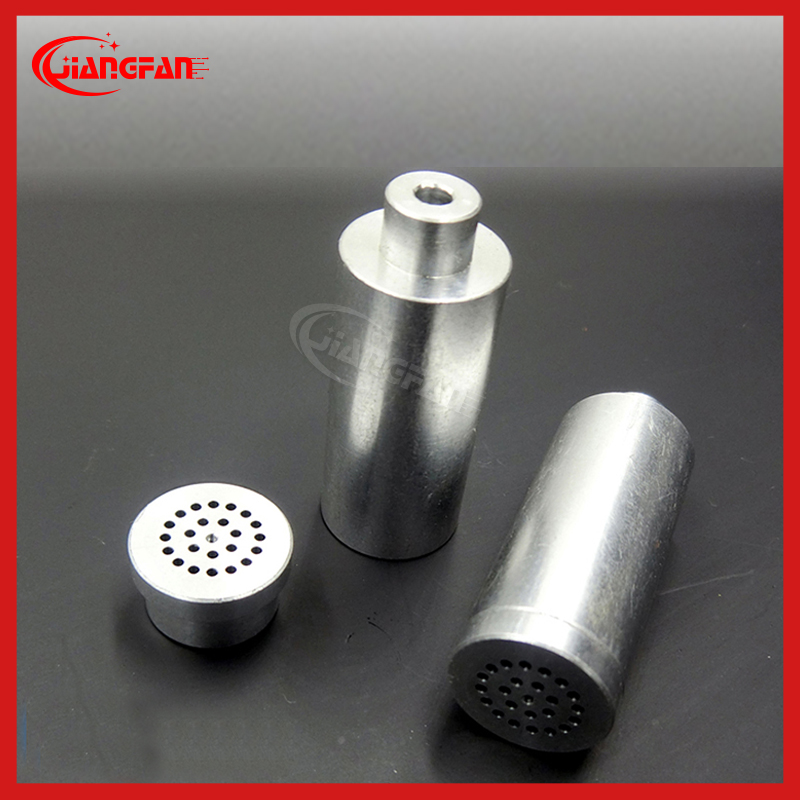

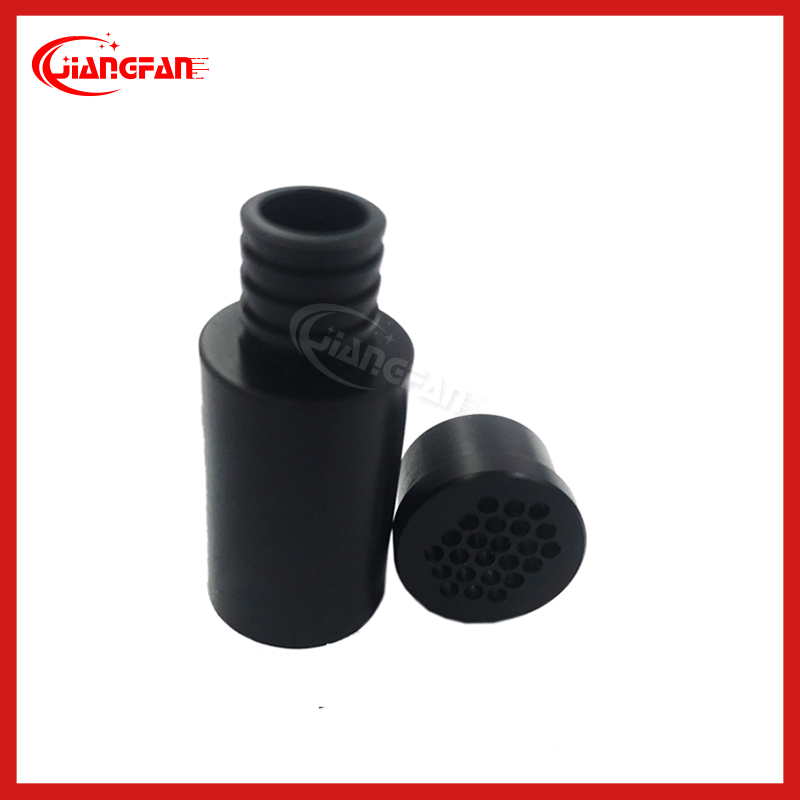

FZQ-08 Fiber Optic Fan Out Kit
Material available:stainless steel/aluminum alloy/copper/iron/POM
Surface treatment:anodizing,electroplating,spray molding,passivation,laser laser LOGO
Color:conventional color is blank,sliver white,customizable in any other color.It is suitable for all round indoorcables,outdoor cables,waterproof cables,armored cables,photoelecric composite cables and FTTH cables.
Accessories:heat shrinkable tube,glue,protective sleeve,fixing ring,screw,spanner.
Application:
- Bunch cable branch
- Armored fiber optic cable branch
- Field optical cable branch
- Various optical/cable branch solutions
Features:
- Material non-metal black
- POM material
- High temperature resistant to ROHS
- Fast and easy fixing

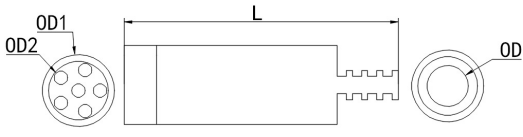

Product structure dimension drawing:
FZQ-08 product ordering information:
|
Core No. OD2 |
Core Dia OD2 | OD Cable Dia | OD1
Product Dia | L
Product Lenths |
material |
| 1 | 2core | 1 | 0.9mm | 1 | 3.0mm | 1 | 10mm | 1 | 20mm | 1 | POM |
| 2 | 4core | 2 | 1.6mm | 2 | 5.0mm | 2 | 12mm | 2 | 35mm | 2 | Aluminum alloy |
| 3 | 6core | 3 | 2.0mm | 3 | 7.0mm | 3 | 14mm | 3 | 43mm | 3 | copper |
| 4 | 8core | 4 | 3.0mm | 4 | Other | 4 | 18mm | 4 | 50mm | 4 | Stainless steel |
| 5 | 12core | 5 | Other | | | 5 | Other | 5 | Other | 5 | Other |
| 6 | 24core | | | | | | | | | | |
| 7 | Other | | | | | | | | | | |
Product Description
The bare fiber of multi-core optical cable is easy to break off. This product can fix branch and cable protection pipe to make the optical fiber data more stable, secure and beautiful.The fixing methods of products generally include metal ring fixation, glue fixation, extrusion deformation and so on.
Optical fiber protection tube is to protect the 125 mu m bare fiber optic fiber is not easy damaged, worn outside casing protection strengthen (usually use 0.9 mm to 2.0 mm to 3.0 mm or other metal specifications) port we called the branch end fixed station (customer called the output or input)
The kits provide the most compact, easy-to-install fan-out solution requiring no additional hardware or space than that required for terminating tight-buffered cables. Indoor kits feature a 900 um fan-out assembly that is color coded to match the fiber color scheme. The fan-out assembly is available with 6- or 12-fiber units in lengths of 0.6 m (25 in) or 1.2 m (47 in). These different lengths provide the installer the flexibility needed for a variety of hardware options.
other product:Our company can customize design and develop new products according to customer needs
