Customized 1550nm Faraday Rotator Mirror For Fiber Optic Sensing

Product Categories
Shenzhen Jiangfan Communication Equipment Co., Ltd.
Contact Now

Customized 1550nm Faraday Rotator Mirror For Fiber Optic Sensing

Brand Name : GAPHO

Model Number : 1550nm Faraday Rotator Mirror (FRM)

Place of Origin : China

MOQ : 50

Price : negotiate

Payment Terms : T/T, D/A, D/P, T/T, L/C

Supply Ability : 10000

Delivery Time : 7-10 day

Packaging Details : Carton,pearl cotton,bubble bag,plastic bag

usage : optical

Fiber Type : SMF-28e+ with 900μm fiber

Insertion Loss : 0.3 (typ.); 0.5 (max.)

Central Wavelength : 1550nm

Operating Temperature : -5 ~ 70

Storage Temperature : -40 ~ 85

Dimension : Φ3.0 × 12.0

Contact Now

Customized 1550nm rotation Fiber Optical faraday rotating mirror for Fiber optic sensing

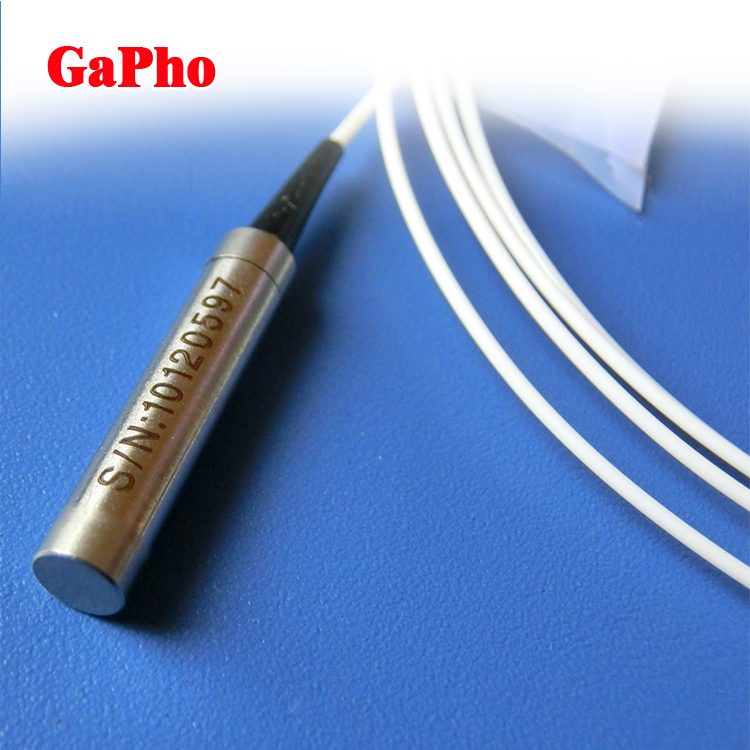

GAPHO Faraday Rotator Mirror (FRM) is the result of years of extensive experiences in magneto-optics technology. The components demonstrate low insertion loss and robustness against environmental variation, making them ideal candidates in the field applications of fiber-optics sensing systems, and test & measurement instrumentation.

Features

● Low insertion loss

● Wide operating wavelength range

● Compact size

● Epoxy free on optical path

● Exceptional stability and reliability

Applications

● Fiber-optics sensing

● Test & measurement

Specification

Item Unit Parameters Notes
Standard Fiber
Fiber Type NA SMF-28e+ with 900μm fiber
Insertion Loss dB 0.3 (typ.); 0.5 (max.)
Central Wavelength nm 1550
Bandwidth nm +/- 15 nm
Rotation Angle degree 90
Rotation Angle Tolerance degree +/- 3
PDL dB 0.05
Optical Power Handling mW 500
Tensile Load N 5
Operating Temperature 0C -5 ~ 70
Storage Temperature 0C -40 ~ 85
Fiber Length m 1.0 +/- 0.1 m
Connector Type   No Connector
Dimension mm Φ3.0 × 12.0



Dimensions Drawing (mm)



Customized 1550nm Faraday Rotator Mirror For Fiber Optic Sensing

Ordering Information(Example:PFRM1-111120)

Customized 1550nm Faraday Rotator Mirror For Fiber Optic Sensing

Customized 1550nm Faraday Rotator Mirror For Fiber Optic SensingCustomized 1550nm Faraday Rotator Mirror For Fiber Optic SensingCustomized 1550nm Faraday Rotator Mirror For Fiber Optic SensingCustomized 1550nm Faraday Rotator Mirror For Fiber Optic Sensing
